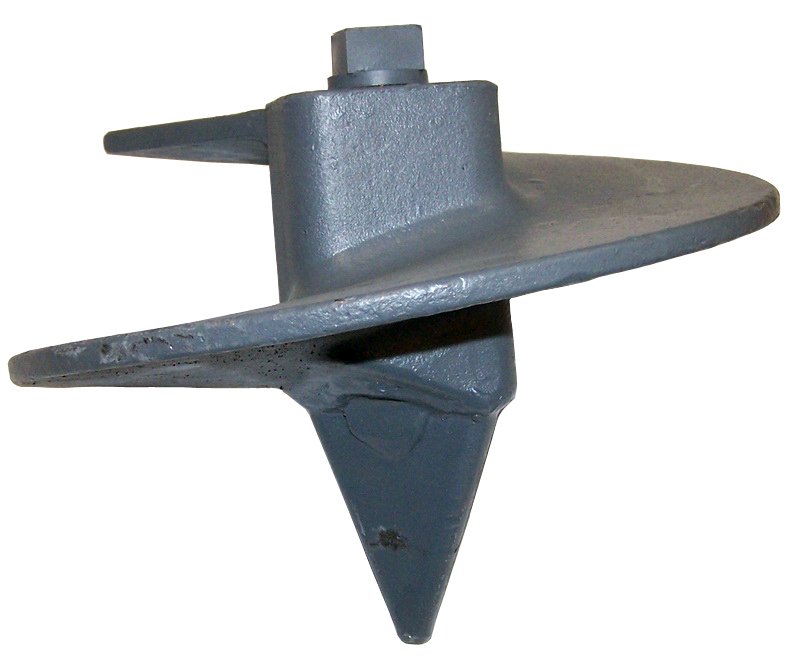

Screw Anchor

Pack	Loose.
Coating	Painted.
Thread	Normally M24 unless specified by the client.
Options	M20 and 1"UNC threads available if
	specified - special batch orders only.
Helix Pitch	90mm.

Part Numbers

AV/SA-SOC-200-M24 Single helix, 200mm dia. 4.70 kgs

AV/SA-SOC-250-M24 Single helix, 250mm dia. 6.70 kgs.

AV/SA-SOC-300-M24 Single helix, 300mm dia. 8.00 kgs.

AV/SA-SOC-350-M24 Single helix, 350mm dia. 10.60 kgs.

Features

Cast one piece main body with generous fillets at the helix to main body joint. No danger of helix tearing off the body as in welded designs.
Investment casting for smooth socket and accurate sizing.
Parts will generally fail by distortion if overloaded.
Specially shaped tip for wobble free and efficient drilling.
Fitted with a screw on plastic cap to protect the thread from rusting.
