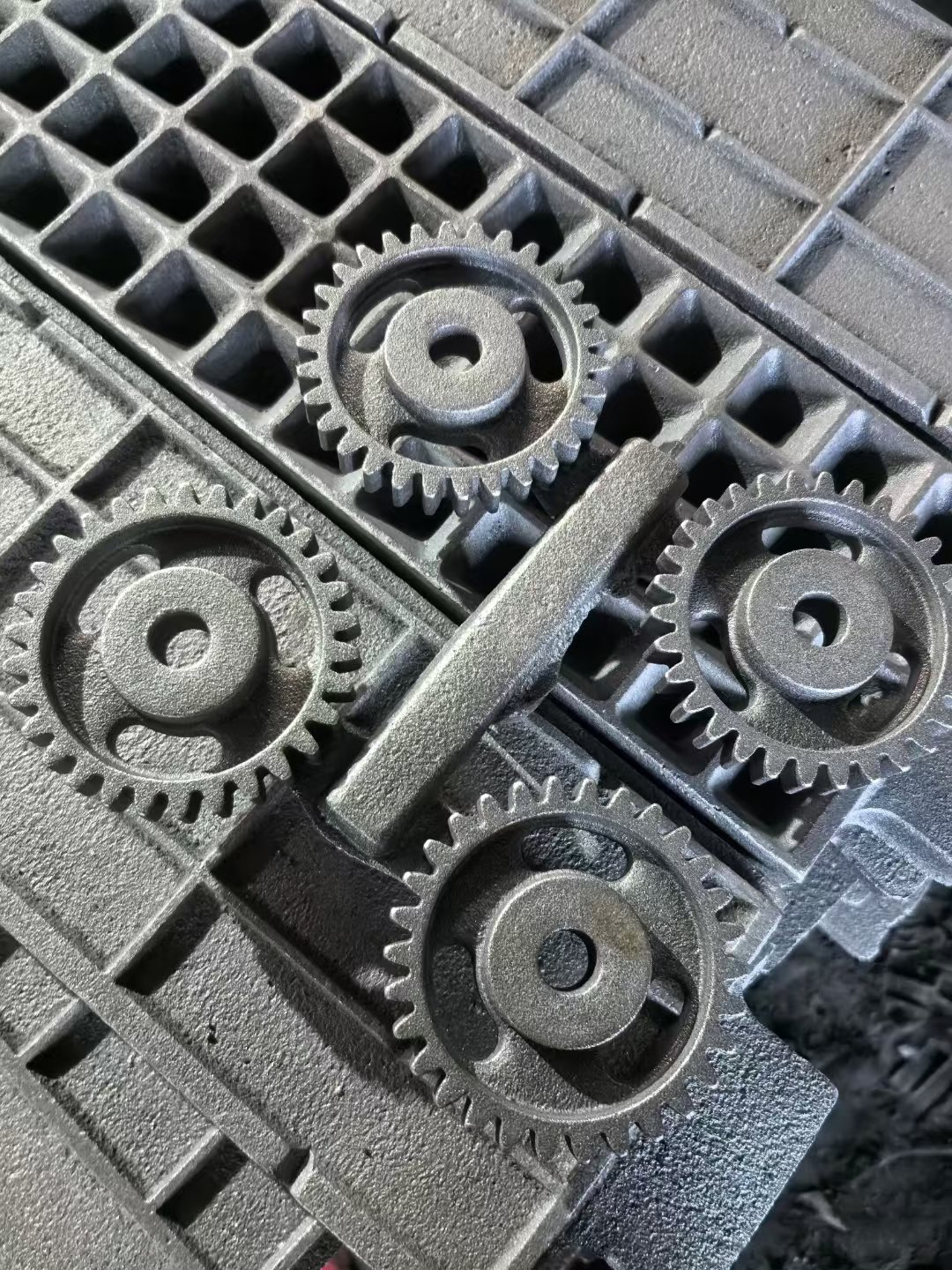

Sand Casting

Sand Casting Manufacturing: Custom Industrial Solutions

Sand casting is one of the oldest and most understood casting processes. It is a very good forming process for lower temperature metals, such as aluminum, magnesium, and copper-based alloys, and is especially suited for manufacturing large parts. The mold is typically made of sand and sand cores. The casted (alloy) material is usually aluminum, steel and cast iron.

We offer ductile iron, gray iron, steel and 356 aluminum castings. Floor molding, Jolt squeezer, Disa-A-Matic lines, and resin sands are also available.

Sand Casting Capabilities

• Weight range: 1-10,000+ lbs

• Tolerances: ±0.030 inch

• Surface finish: 250-500 RMS

• Complex internal passages

• Low tooling cost

Quality Standards

• Radiographic testing

• Chemical analysis

• Mechanical testing

• Dimensional inspection

• Material certification

Materials

• Gray iron

• Ductile iron

• Steel alloys

• Aluminum

• Bronze

• Stainless steel

Applications

• Heavy equipment

• Machine bases

• Pump housings

• Engine blocks

• Construction equipment

• Agricultural machinery

Iron Casting Materials

• Gray Cast Iron: HT150, HT200, HT250, HT300, HT350, etc

• Ductile Iron: QT400-15, QT450-10, QT500-7, QT600-3, QT700-2, etc

• Wear-Resistant Cast Iron: KmTBCr15Mo, KmTBCr20Mo, KmTBCr26, etc

• Carbon Steel: ZG200-400, ZG230-450, ZG250-500, etc

• Low-Alloy Steel: ZG20Mn, ZG20CrMo, ZG30MnSi, ZG40Cr, ZG35CrMo, etc

• Stainless Cast Steel: ZG06Cr13, ZG10Cr17, ZG0Cr18Ni9, ZG00Cr17Ni14Mo2, etc
