Introduction:

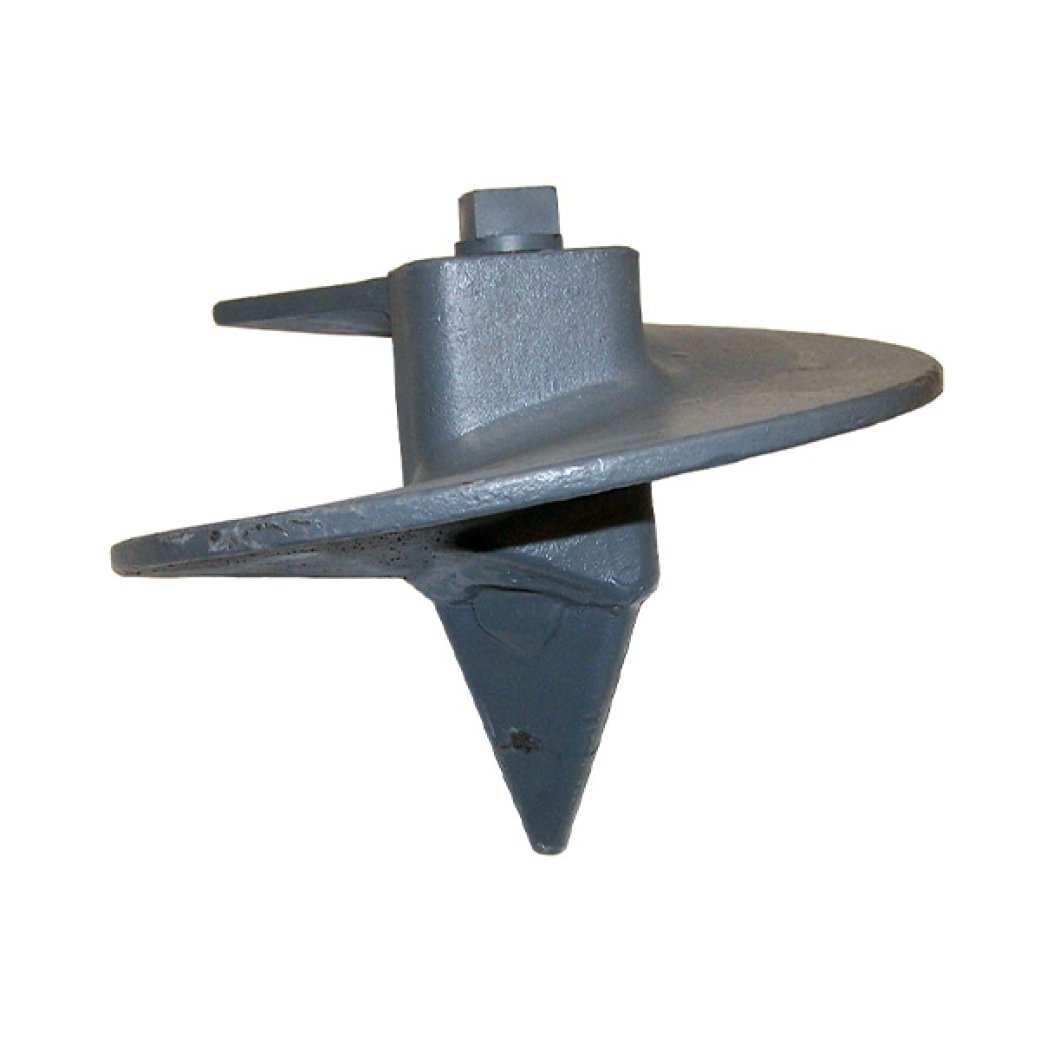

Cast one piece main body with generous fillets at the helix to main body joint. No danger of helix tearing off the body as in welded designs.
Investment casting for smooth socket and accurate sizing.
Parts will generally fail by distortion if overloaded.
Specially shaped tip for wobble free and efficient drilling.
Fitted with a screw on plastic cap to protect the thread from
Product Details
| AV/SA-SOC-200-M24 | Single helix, 200mm dia. | 4.70 kgs |
| AV/SA-SOC-250-M24 | Single helix, 250mm dia. | 6.70 kgs. |
| AV/SA-SOC-300-M24 | Single helix, 300mm dia. | 8.00 kgs. |
| AV/SA-SOC-350-M24 | Single helix, 350mm dia. | 10.60 kgs |
Specifications
| Axial Load Rating | 144KN. |
| Torque Rating | 10,000 ft. lbs. (14 KNm). |
| Material | Steel to AS2074/C4-2. |
| Pack | Loose. |
| Coating | Painted. |
| Thread | Normally M24 unless specified by the client. |
| Options | M20 and 1"UNC threads available if |
| specified - special batch orders only. | |
| Helix Pitch | 90mm. |
